Neue Kippermodelle UDK

Efficiency, functionality and performance in new variants

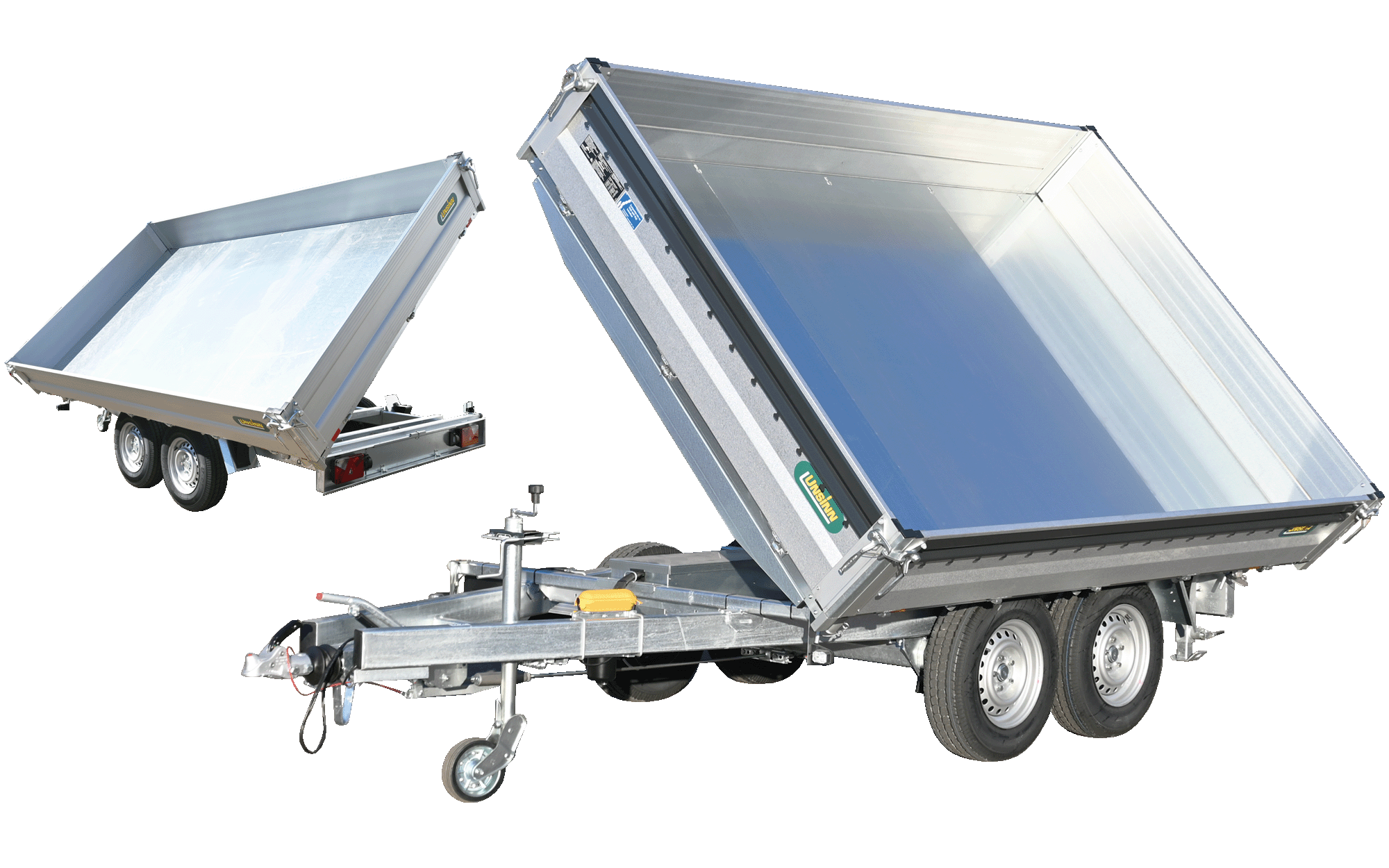

Starting immediately, additional three-way tipper models with the patented load securing system Spinlock are available in the width 2040 mm and with innovative features as a new addition to the UDK trailer series from UNSINN.

Discover three-way tipper type UDK Spinlock

Effizienz, Funktionalität und Leistung in neuen Varianten:

Er hängt sie alle ab: Dem Dreiseitenkipper Typ UDK mit patentierter Ladungssicherung Spinlock macht so schnell keiner was vor. Entwickelt für den professionellen Einsatz, ergänzen jetzt weitere Modelle in der Breite 2040 mm die UDK-Anhängerserie von UNSINN und glänzen mit innovativen Features.

Your advantages

Other standard basic equipment:

  • Torsion-resistant longitudinal beam chassis
  • Closed, completely welded and hot-dip galvanised steel frame profile with maintenance support
  • Integrated ramp shaft with tensioning device and folding licence plate holder
  • Reinforced automatic support wheel with a load capacity of 500 kg
  • Manoeuvring handle with practical lashing strap winder
  • Completely foldable and removable aluminium side panels with angle lever locks
  • Fold-down tailboard with steel planking
  • Plug-in and removable steel end stanchions
  • Protected mounted e-hydraulics with battery and powerful trickle charger
  • Lighting with 13-pin plug and reversing lights
UDK Spinlock gekippt

All new accessories at a glance:

  • Mesh cage attachment with integrated pendulum bearing, height 650 mm, compatible with standard accessories, e.g. net and flat tarpaulin
  • Hydraulic control with ICARUS blue® app including Y-cable for parallel use of cable remote control & smartphone
  • Hydraulic control with radio remote control including Y-cable for parallel use of cable remote control and radio remote control
  • Grain slide gate in the tailboard for metered unloading
Heckansicht UDK Spinlock
Zubehörneuheiten UDK

The "ICARUS blue®" smartphone app allows you to conveniently control the bridge of the trailer. The supplied Y-cable allows the parallel use of cable remote control and smartphone. Discover it now in the video!



The optional grain slide gate installed in the tailboard allows vehicle owners to unload loaded bulk material in a metered manner. Discover it now in the video!

The optional grain slide gate installed in the tailboard allows vehicle owners to unload loaded bulk material in a metered manner. Discover it now in the video!

Spinlock load securing system

The patented Spinlock load securing system ensures that any load can be secured according to regulations. This is made possible by lashing pins built into the bridge floor. The lashing pins can each be loaded with up to 1,500 daN (kg) both on and under the loading platform, for example with a strap loop. A practical pot magnet with key ring is available for pulling out the lashing pins when the side panel is open.

Spinlock load securing system - briefly explained

All models of the UDK Spinlock series at a glance:



Internal dimensions

L x W x H

Authorized

gross weight

Payload

Loading height

Tyres

Type

3060 x 2040 x 350 mm

2600 kg

1700 kg

750 mm

14“

UDK-2630-14-2040





 1710 kg

710 mm

13“

UDK 2630-13-2040



3000 kg

2100 kg

780 mm

14“

UDK 3030-14-2040





2110 kg

710 mm

13“

UDK 3030-13-2040



3500 kg

2530 kg

780 mm

14“

UDK 3530-14-2040





2540 kg

710 mm

13“

UDK 3530-13-2040

3660 x 2040 x 350 mm

3500 kg

2430 kg

770 mm

14“

UDK 3536-14-2040





2440 kg

700 mm

13“

UDK 3536-13-2040

4260 x 2040 x 350 mm

3500 kg

2360 kg

 780 mm

14“

UDK 3542-14-2040





2370 kg

720 mm

13“

UDK 3542-13-2040
