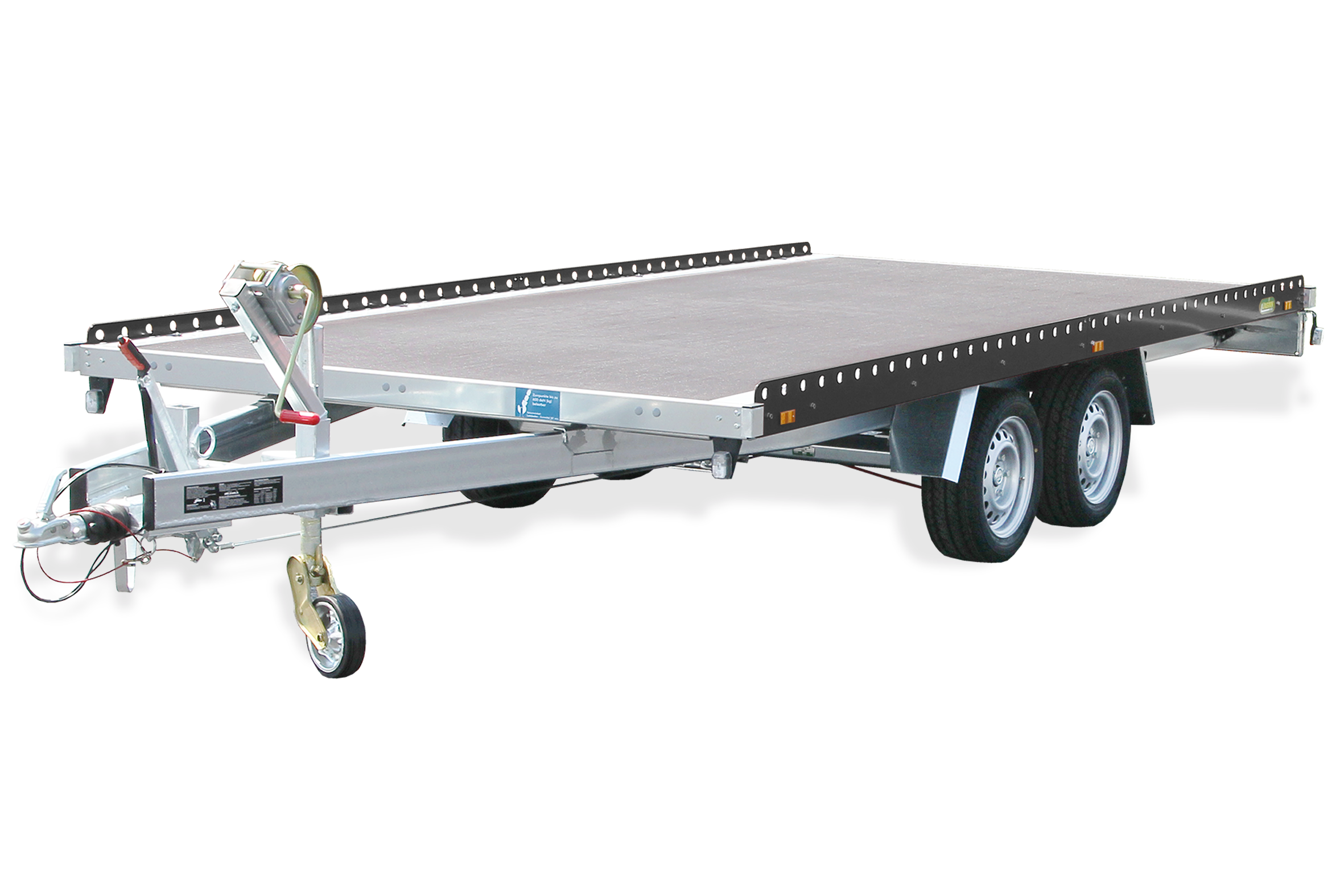

Frame
Torsion-resistant longitudinal beam chassis for high directional stability
Closed, completely welded and hot-dip galvanised steel frame profile for optimum stability
Support wheel
Reinforced automatic support wheel mounted on a separate crossbar with a load capacity of 500 kg for safe parking of the trailer
Manoeuvring handle for easy handling
Superstructure
Rail bracket mounted under the loading area
Two steel ramp rails with a max. load capacity of 2900 kg / pair, length: approx. 2625 mm, width: approx. 300 mm
Winch block and hand winch with 900 kg pulling force supplied loose for safe loading
One pair of sturdy drop supports mounted at the rear
Drive-on rail anti-slip device at the rear of the vehicle
Load securing
Powder-coated side skirts in black-grey (RAL 7021) for securing the load
Lashing points in the side skirts can each be loaded with up to 400 daN (kg)
Lashing recesses can be loaded with up to 600 daN (kg) each and DEKRA certified
Loading area
Multi-bonded, anti-slip and waterproof screen printing plate (18 mm)
Continuous (= without joint), embedded in the floor frame profile for more stability and durability
Electrical system
Lighting with 13-pin plug and protected mounted rear lights for long and safe function of the electrical components
Cable routing in the chassis longitudinal members -> protection against external influences, therefore particularly durable
