Standard equipment

Frame

Torsion-resistant aluminium chassis for high directional stability

Support wheel with brakes

Reinforced automatic support wheel with a load capacity of 500 kg for safe parking of the trailer

Manoeuvring handle for easy handling

Load securing

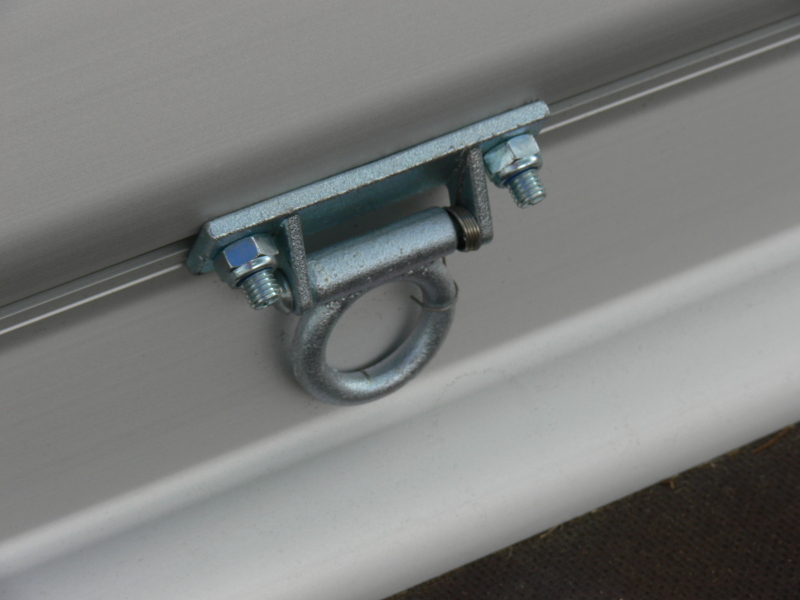

Four recessed, fold-down lashing eyes, mounted in the side wall, for simple & convenient load securing

Lashing eyes can be loaded with up to 300 daN (kg) each

Drop sides

Anodised aluminium drop sides

Loading area

Multi-bonded, slip-resistant and waterproof screen printing plate (15 mm)

Screen printing plate continuous (= without joint), embedded in the floor frame profile for more stability and durability

Electrics

Lighting with 13-pin plug and protected mounted rear lights for long and safe function of the electrical components

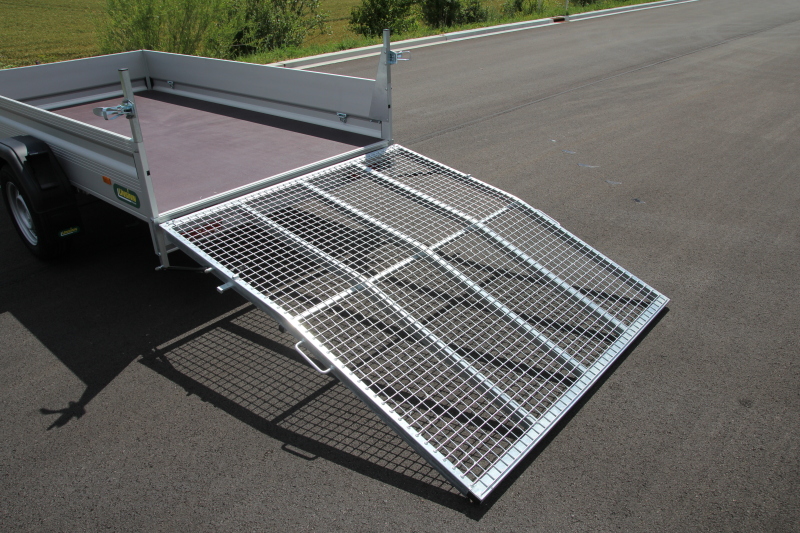

Steel grid ramp with gas spring support

Across the entire trailer width, mounted upright at the rear

With a load capacity of 500 kg for four-wheel vehicles with pneumatic tyres (axle distance min. 700 mm)

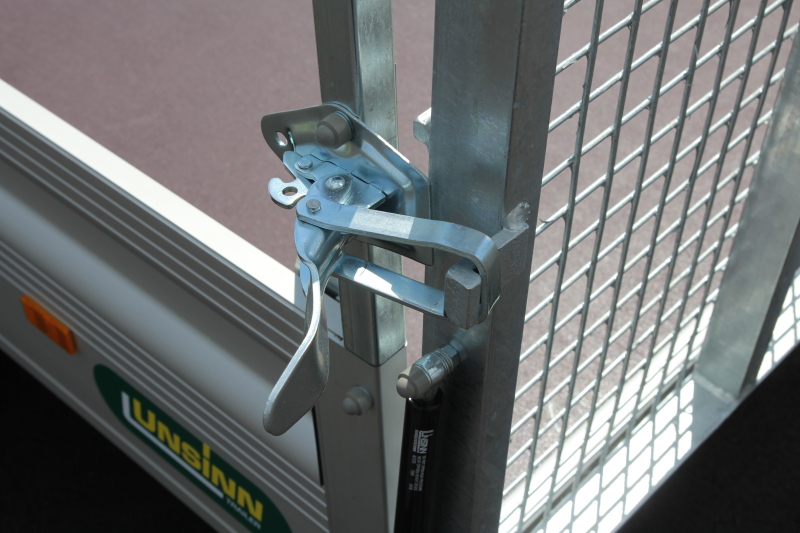

Galvanised tension lock

Choose your accessory

Accessories

1 16 72

1

1 18 53

1
Superstructure

1 26 21

1

1 19 85

Sliding support per piece, loose
1

1 19 73

1

1 26 41

1
Electrical system

1 16 73

1

1 16 68

1

1 16 71

Spare wheel 185/65 R14, loose
1

1 26 39

1

1 35 39

1

1 28 21

1

1 02 73

1

1 02 75

Registration Certificate Part II
1

1 02 76

1
